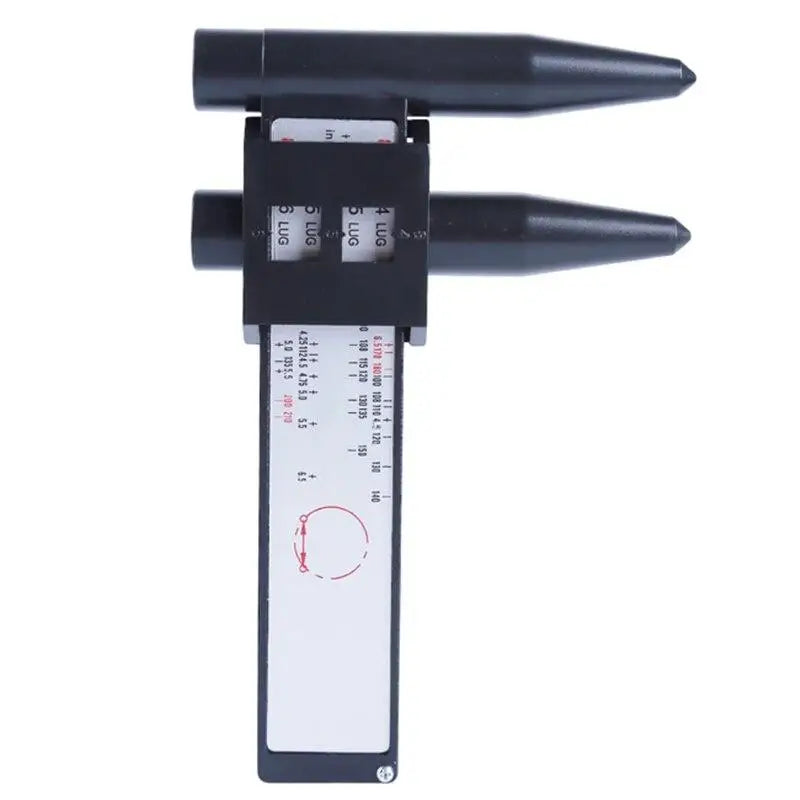

PCD Measuring Tool – 8-Hole Wheel Bolt Pattern Hub Pitch Gauge
PCD Measuring Tool – 8-Hole Wheel Bolt Pattern Hub Pitch Gauge
Wheel Rim Bolt Pattern PCD Measuring Tool – 8-Hole Hub Pitch Gauge
Take the guesswork out of wheel fitment with this sliding PCD (Pitch Circle Diameter) Measuring Tool. Whether you're upgrading your rims, swapping wheels between vehicles, or sourcing replacement lug bolts, this precision hub pitch gauge gives you fast, accurate bolt pattern readings for up to 8-hole wheel configurations — no complex math or specialty shop required.
Key Features
- Sliding Design: Adjustable arms glide smoothly to align with bolt holes for quick, hands-on measurements across a wide range of wheel sizes.
- 8-Hole Compatibility: Supports bolt patterns from 4 to 8 holes, covering the most common configurations for cars, trucks, SUVs, and vans.
- Durable ABS Construction: Lightweight yet sturdy ABS material resists everyday workshop wear while keeping the tool easy to handle.
- Easy to Read: Clear, marked scale lets you read the PCD measurement directly — no conversion charts or calculators needed.
- Compact & Portable: Slim profile slips easily into a toolbox, glove compartment, or shop drawer for on-the-spot measurements wherever you need them.
- 1 PC Package: Includes one complete PCD pitch gauge ruler, ready to use right out of the box.
Specifications
| Material | ABS Plastic |
| Bolt Hole Compatibility | Up to 8 holes |
| Package Contents | 1 × PCD Measuring Tool |
| Country of Origin | Made in China |
Who Is This For?
This tool is ideal for DIY automotive enthusiasts, home mechanics, tire shop technicians, and car restorers who need a reliable, no-fuss way to verify wheel bolt patterns before purchasing new wheels or lug hardware. It eliminates the need for tape measures and bolt-pattern calculators, saving you time and reducing costly fitment mistakes.
Please Note
- Please allow 1–3 mm differences due to manual measurement tolerances.
- Actual color may vary slightly from product images due to differences in monitor display settings.
You May Also Like
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel, Fine-Toothed, Portable Mini
- 10Pcs Wooden Handle Nylon Bristle Paint Brush – Hand Tool Set
- 1pc Professional Heavy-Duty Pruning Shears with Anti-Slip Handle
Learn more: FuelEconomy.gov on vehicle maintenance
Frequently Asked Questions
Q: What is a PCD measuring tool used for in automotive work?
A: A PCD (Pitch Circle Diameter) measuring tool is used to determine the bolt pattern of a wheel hub — specifically the diameter of the circle on which the bolt holes are evenly spaced. Knowing the correct PCD is essential when selecting replacement wheels, lug bolts, or hub adapters to ensure a proper and safe fit on your vehicle.
Q: How many bolt patterns can this pitch gauge measure?
A: This sliding PCD gauge supports wheel configurations with up to 8 bolt holes, covering the most common patterns found on passenger cars, light trucks, SUVs, and commercial vehicles — making it a versatile tool for a wide range of automotive applications.
Q: Is this tool suitable for beginners or only for professional mechanics?
A: This PCD measuring tool is designed to be user-friendly for both beginners and seasoned mechanics. Its sliding arms and direct-read scale mean you don't need any specialized training — simply align the arms with the bolt holes and read the measurement. It's a practical addition to any home garage or professional shop.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
