Wi-Fi 6 & Bluetooth 5.4 Dual-Mode Wireless Module Test Kit

$31.19 USD $39.11 USD

Wi-Fi 6 + Bluetooth 5.4 Dual-Mode Wireless Module Test Kit

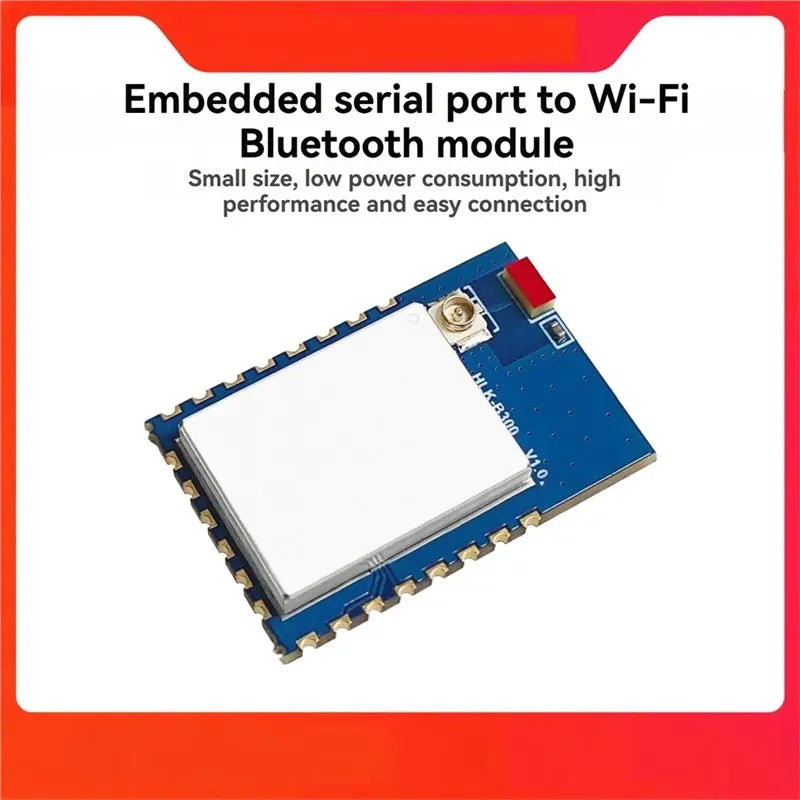

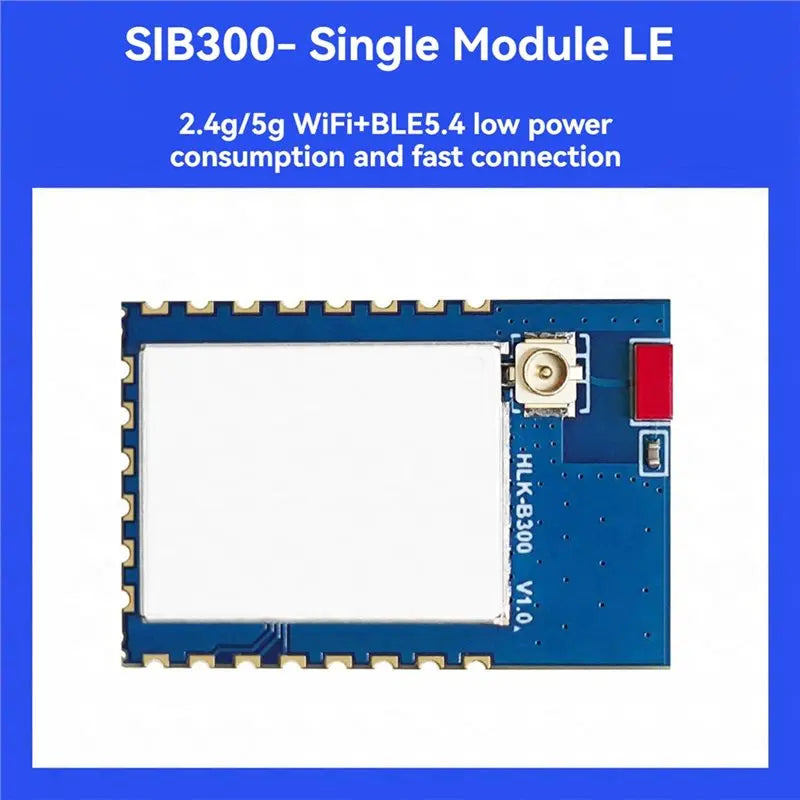

Upgrade your smart home or IoT development projects with this low-power embedded Wi-Fi 6 (802.11ax) + BLE 5.4 dual-protocol wireless module. Built around a highly integrated RF chip with a minimal number of peripheral components, this module comes pre-loaded with AT firmware and includes everything you need to get started right out of the box. Whether you're a developer, hobbyist, or engineer, this test kit makes prototyping wireless connectivity fast and straightforward.

Key Features

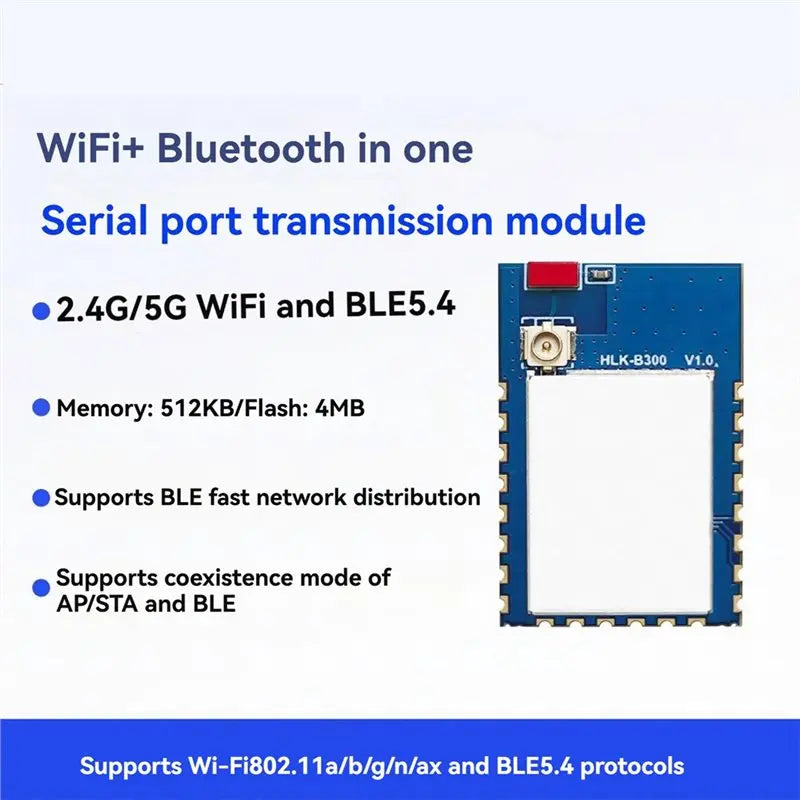

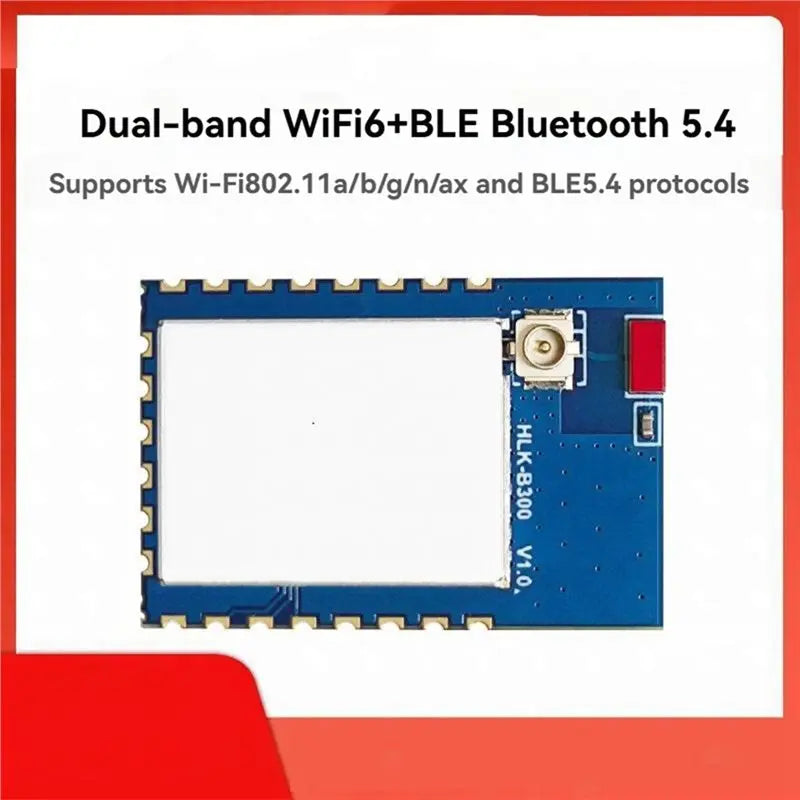

Dual-Band Wi-Fi 6: Supports 2.4 GHz and 5 GHz bands for faster, more reliable wireless connections
BLE 5.4: Latest Bluetooth Low Energy standard for efficient short-range communication
AP/STA + BLE Coexistence: Run Wi-Fi and Bluetooth simultaneously without interference

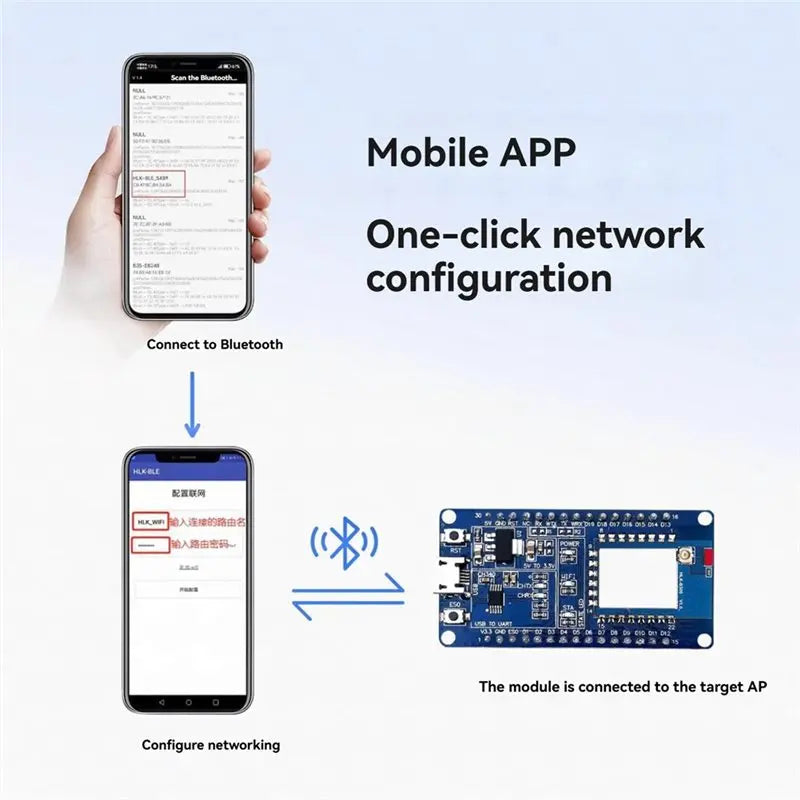

BLE-Assisted Fast Network Provisioning: Quickly onboard devices to your Wi-Fi network using Bluetooth
Low Power Consumption: 70 mA operating current (peak 300 mA), ideal for battery-powered applications
AT Command Set: Easy configuration via standard AT+ commands over serial (UART)
Robust Security: WEP/WPA/WPA2-PSK/WPA3-PSK with WEP64/WEP128/TKIP/AES encryption
Onboard Memory: 512 KB RAM / 4 MB Flash for your applications and data

Technical Specifications

Wireless Standards	IEEE 802.11 a/b/g/n/ax (Wi-Fi 6), BLE 5.4
Frequency Range	Wi-Fi: 2.412–2.484 GHz (2.4G); 4.900–5.925 GHz (5G) \| BT: 2402–2480 MHz
Transmit Power	Wi-Fi: 18–19 dBm (2.4G), 14–18 dBm (5G) \| BT: 15 dBm (Max)
Receive Sensitivity	Wi-Fi: -75 to -92 dBm \| BT: -98 dBm
Hardware Interfaces	UART / GPIO
Operating Voltage	3.3 V (range: 2.1 V – 3.63 V)
GPIO Drive Capability	Max 12.8 mA
Operating Current	70 mA (Peak: 300 mA)
Network Modes	STA / AP
Network Protocols	IPv4, TCP/UDP, LwIP
Firmware Upgrade	Serial Port Upgrade
User Configuration	AT+ Command Set
Material	PCB
Memory	512 KB RAM / 4 MB Flash

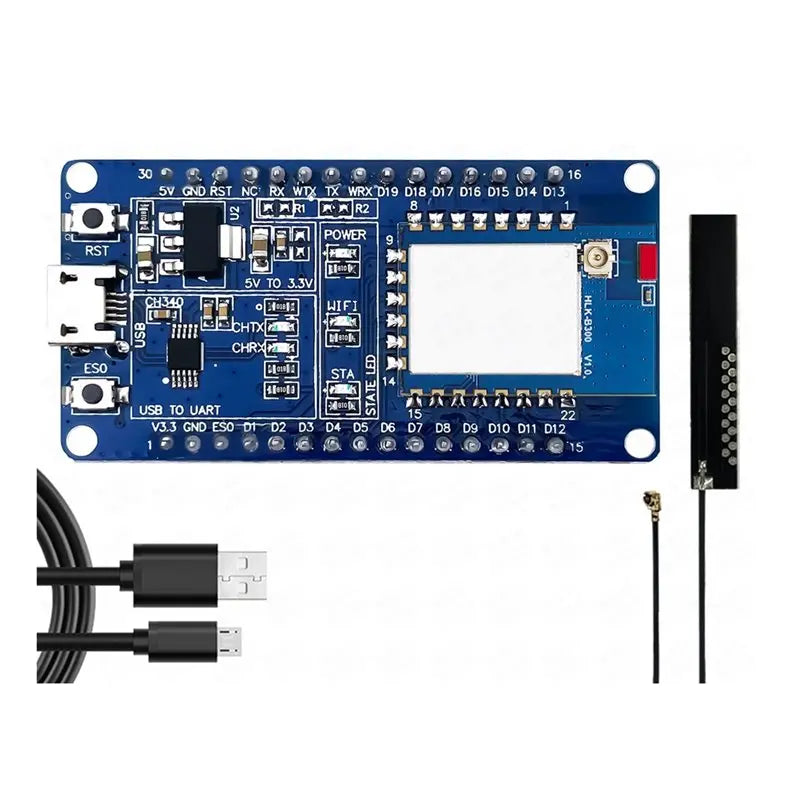

What's in the Box

1× Wi-Fi 6 + BLE 5.4 Module (with AT firmware pre-loaded)
1× Test backplane
1× USB cable
1× 2.4 GHz PCB antenna

Made in Mainland China. Note: Due to lighting conditions and display differences, the item's color in images may vary slightly from the actual product. Measurement tolerance: ±1–3 cm.

Frequently Asked Questions

Q: Does this Wi-Fi 6 Bluetooth 5.4 module work with smart home platforms like Home Assistant or custom IoT firmware?

A: Yes. The module supports standard serial AT+ commands over UART, making it compatible with a wide range of microcontrollers and development boards. Developers can integrate it with smart home platforms or custom IoT firmware by communicating through the UART interface. It supports IPv4, TCP/UDP, and LwIP network protocols for flexible connectivity.

Q: Can Wi-Fi and Bluetooth be used at the same time on this module?

A: Absolutely. This module supports AP/STA and BLE coexistence modes, meaning Wi-Fi and BLE 5.4 can operate simultaneously. This is especially useful for applications requiring BLE-assisted network provisioning while maintaining an active Wi-Fi connection.

Q: What security protocols does this dual-mode wireless module support?

A: The module supports WEP, WPA, WPA2-PSK, and WPA3-PSK security mechanisms with encryption types including WEP64, WEP128, TKIP, and AES — ensuring your wireless communications remain secure across a variety of network environments.

Q: How do I upgrade the firmware on this module?

A: Firmware upgrades are performed via the serial port (UART). The included test backplane and USB cable make it easy to connect the module to your computer for firmware flashing and AT command testing right out of the box.
