WiFi LoRa 32 V4 — Solar-Powered ESP32-S3 Development Board for Mesh Networks

The WiFi LoRa 32 V4 is the fully upgraded evolution of the classic LoRa development board, built on the powerful ESP32-S3R2 MCU and SX1262 LoRa transceiver. With tri-mode wireless connectivity (Wi-Fi, BLE, and LoRa), solar charging support, and an ultra-low standby current under 20μA, this board is engineered for professional IoT deployments — from smart cities and agricultural monitoring to Meshtastic mesh networking and off-grid remote sensing.

Made in Mainland China.

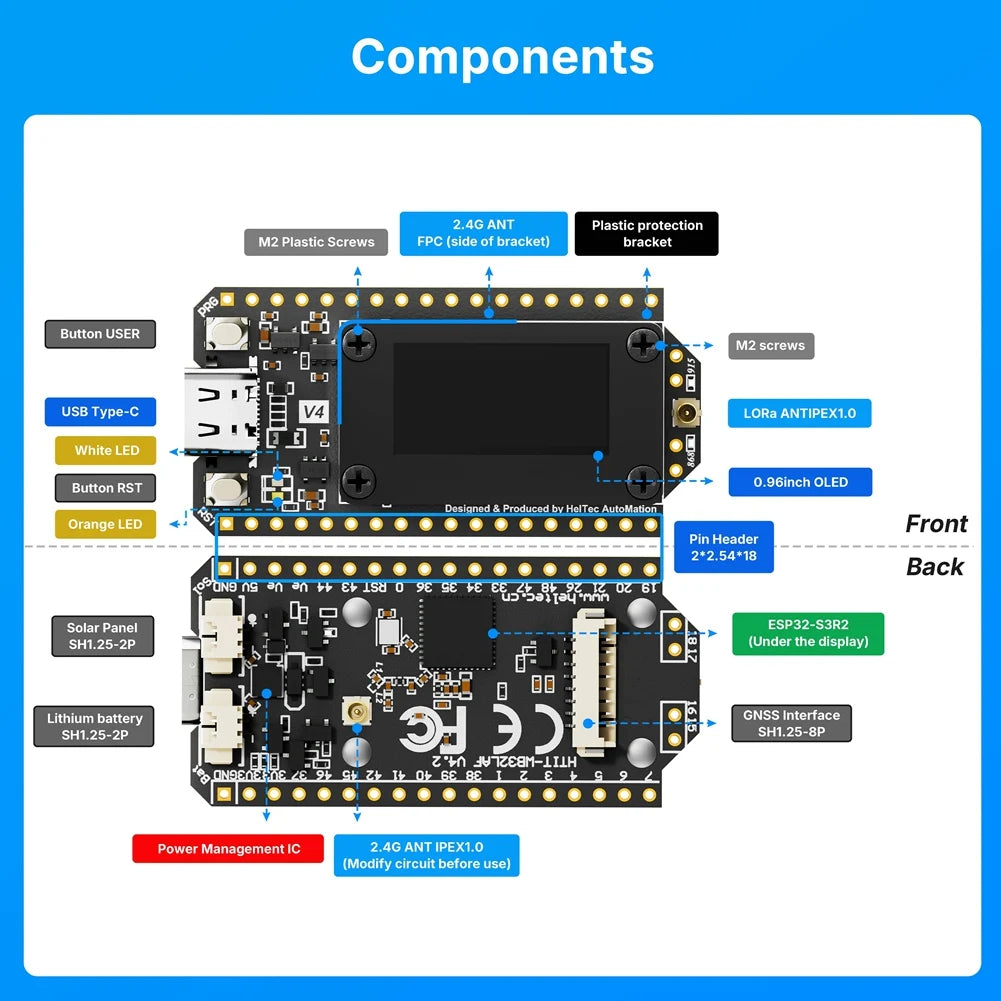

Key Features

• Triple Wireless Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth Low Energy (BLE), and LoRa (863–928 MHz) all in one board.
• High-Power LoRa TX: Up to 28 ±1 dBm transmit power (high-power version) or 22 dBm (low-power version) for long-range communication.

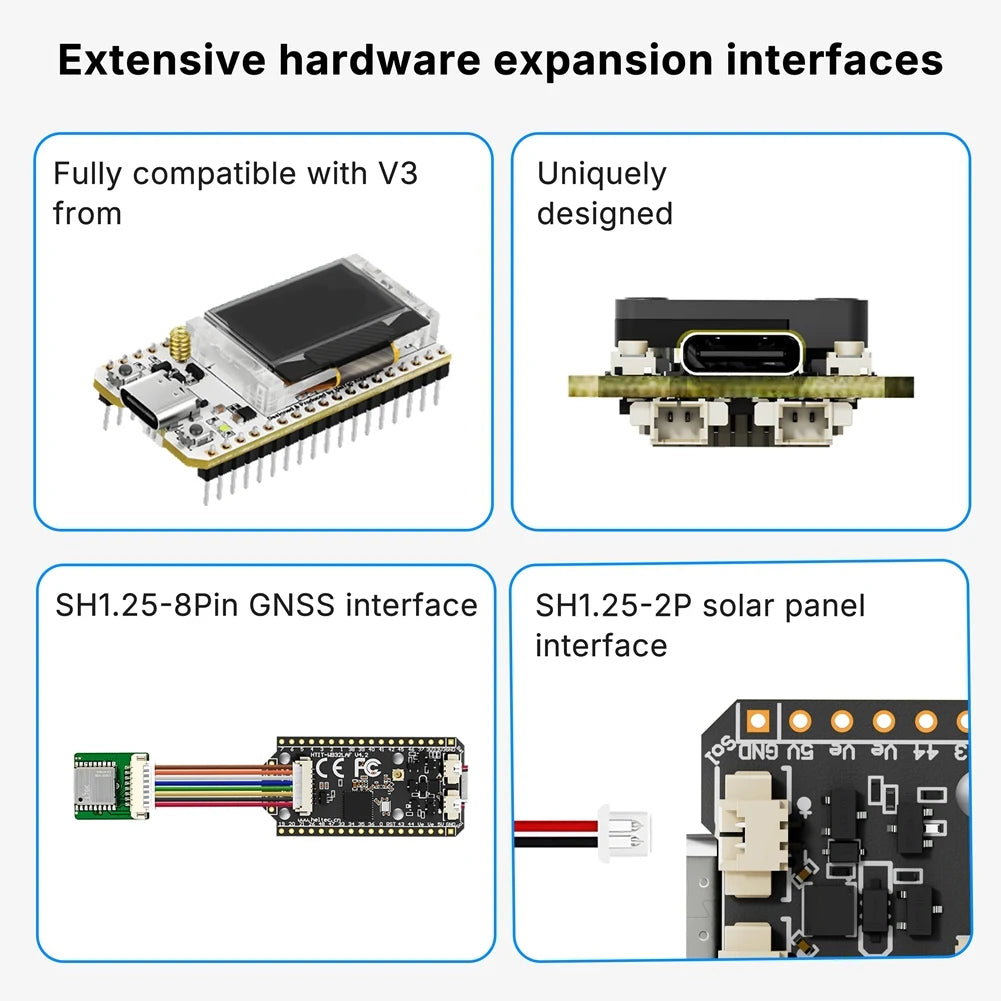

• Solar Input Ready: Dedicated SH1.25-2Pin solar panel interface enables off-grid, self-sustaining deployments.
• Generous Memory: 2MB PSRAM + 16MB external Flash — ideal for complex UIs and data-heavy applications.
• GNSS Interface: SH1.25-8Pin GPS/GNSS connector for location-aware IoT projects.
• Ultra-Low Power: Standby current under 20μA keeps battery-operated nodes running longer.
• 0.96-Inch OLED Display: Onboard screen with full mechanical protection and B2B connector.
• Gold-Plated Pins: 40-pin header with gold-plated contacts for reliable, corrosion-resistant connections.
• FPC 2.4G Antenna: Integrated PC casing that protects the screen and houses the FPC 2.4G antenna.

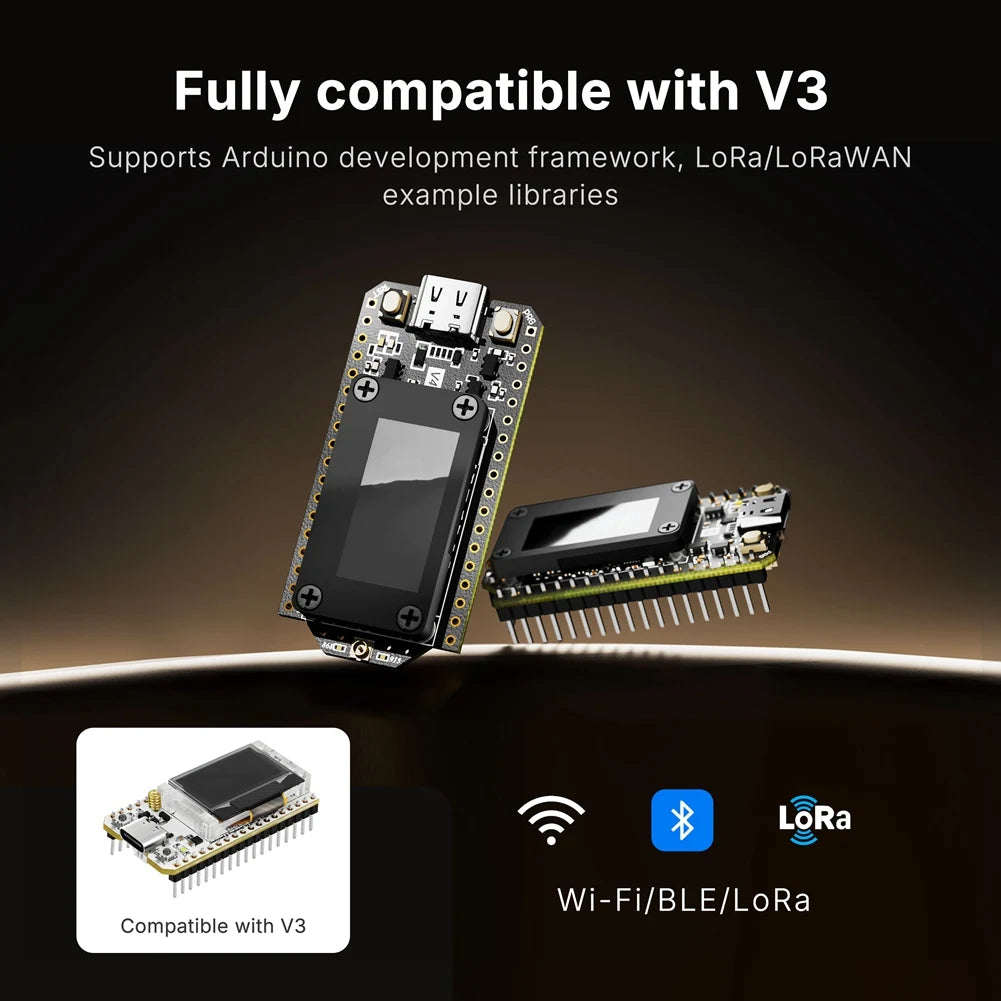

• V3-Compatible Form Factor: Pin and footprint compatibility with WiFi LoRa 32 V3 for easy upgrades.
• Meshtastic Ready: Fully compatible with the Meshtastic open-source mesh networking firmware.

Technical Specifications

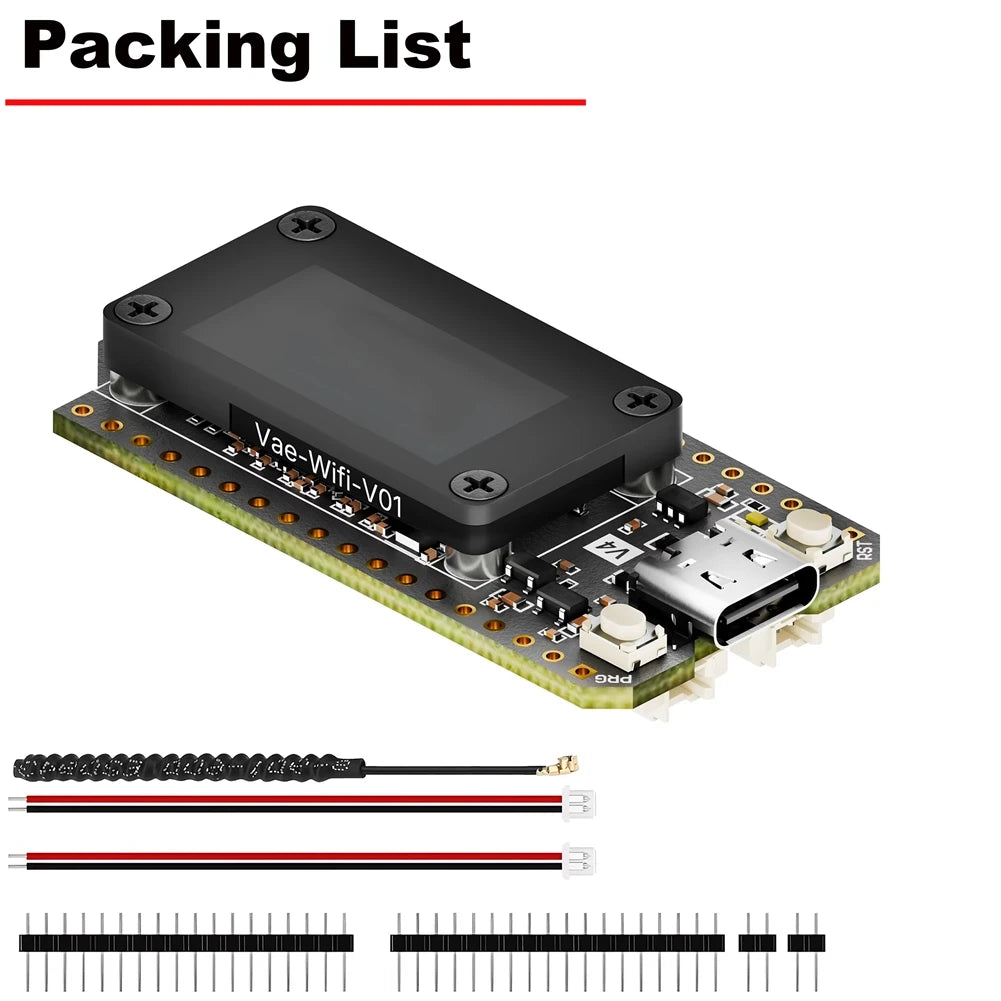

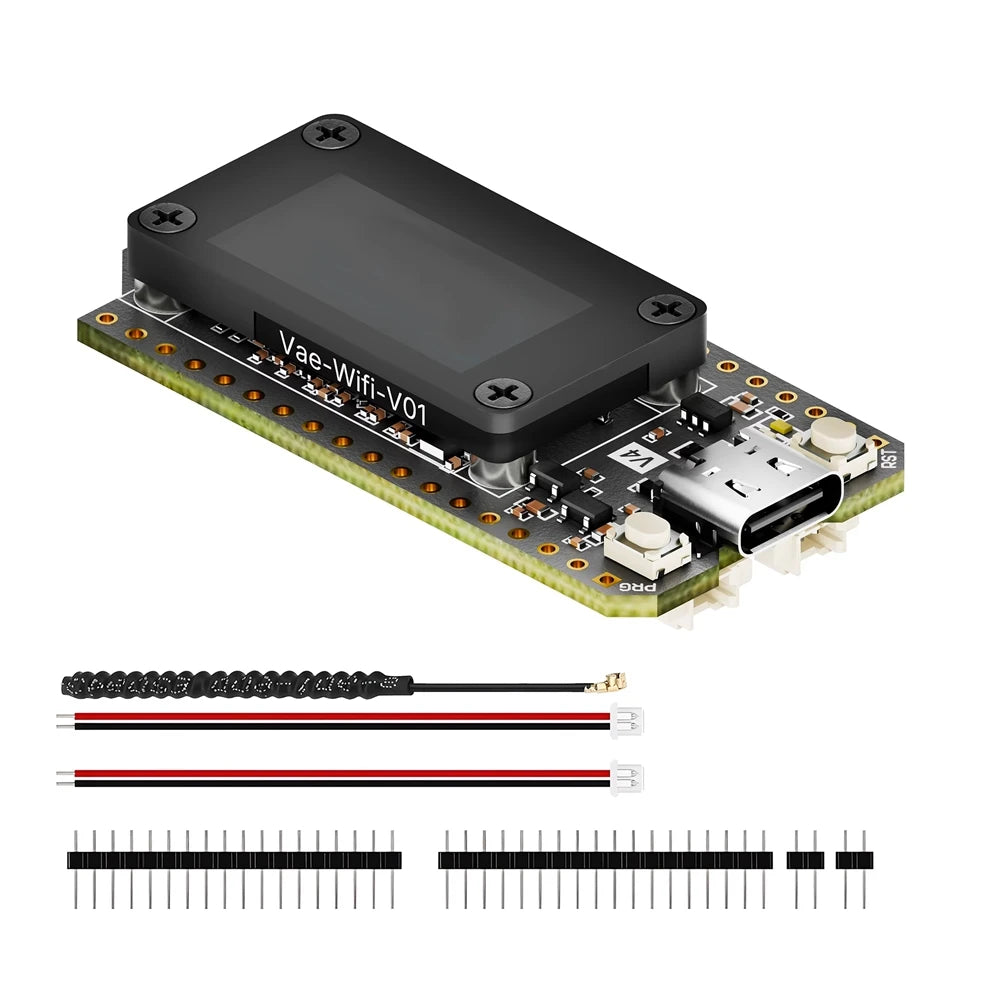

What's in the Box

• 1× WiFi LoRa 32 V4 Development Board
• 1× Accessory Set

Ideal Applications

This versatile development board is designed for a wide range of IoT use cases:

• Meshtastic off-grid mesh communication networks
• Smart city infrastructure and sensor nodes
• Agricultural and environmental remote monitoring
• Smart home automation hubs
• Industrial control and security systems
• Wireless meter reading solutions
• Solar-powered remote field stations

You May Also Like

• 10CM Wireless LED Motion Sensor Night Light – Type-C Rechargeable Lamp
• 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel, Portable Mini
• 360-Degree Rotating Storage Tray for Kitchen Organization

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: Is the WiFi LoRa 32 V4 compatible with Meshtastic firmware?

A: Yes — the WiFi LoRa 32 V4 with ESP32-S3R2 and SX1262 is fully compatible with the Meshtastic open-source mesh networking firmware, making it an excellent choice for building long-range, off-grid communication networks.

Q: Can the WiFi LoRa 32 V4 be powered by a solar panel?

A: Absolutely. The board features a dedicated SH1.25-2Pin solar panel interface combined with an upgraded power management IC that supports solar input, enabling fully autonomous, solar-powered deployments in the field.

Q: What is the operating frequency of the LoRa module?

A: The onboard SX1262 LoRa transceiver operates across the 863–928 MHz frequency range, covering the standard ISM bands used in Europe, Asia, and other regions for LoRa and LoRaWAN communications.

Q: Is this board backward-compatible with WiFi LoRa 32 V3?

A: Yes. The V4 maintains the same form factor and pin layout as the V3, so existing enclosures, shields, and wiring setups designed for the V3 are compatible with the V4 upgrade.
