120° PIR Motion Sensor Switch for LED Lights 12-24V DC
120° PIR Motion Sensor Switch for LED Lights 12-24V DC
Auto On/Off Lighting with 120° Infrared Motion Detection
Take full control of your LED lighting with this Automatic PIR Motion Sensor Switch. Featuring a wide 120-degree detection angle and a sensing range of 5–8 meters, this smart switch automatically turns lights on when motion is detected and off when the area is clear — saving energy effortlessly. Compact, easy to install, and built from durable plastic and metal, it's ideal for hallways, garages, storage rooms, cabinets, staircases, and more.
Key Features
- Wide Detection Angle: 120° infrared sensing field covers a broad area with no blind spots
- Extended Range: Detects motion from 5 to 8 meters away
- Stable, Flicker-Free Output: Smooth and consistent light control with no flickering
- Versatile Voltage Support: Compatible with 12V and 24V DC systems
- High Output Capacity: Up to 96W at 12V / 192W at 24V — handles LED strips, LED lamps, fluorescent lights, and more
- Low Standby Power: Static power consumption under 1W for energy efficiency
- Quick Response: 60–120ms delay time for near-instant activation
- Wide Temperature Range: Operates reliably from -20°C to 60°C
- Simple Setup: Plug-and-play installation with no complex wiring required
Specifications
| Type | PIR Motion Sensor Switch |
| Material | Plastic + Metal |
| Dimensions | Approx. 76 × 45 × 35 mm (L × W × H) |
| Color | Black |
| Detection Distance | 5 – 8 meters |
| Detection Angle | 120 degrees |
| Input Voltage | 12V – 24V DC |
| Output Current | 8A |
| Output Power | 12V: <96W / 24V: <192W |
| Static Power Consumption | <1W |
| Delay Time | 60 – 120 ms |
| Working Temperature | -20°C to 60°C |
| Country of Origin | Made in Mainland China |
Compatible With
- LED lamps and LED strip lights
- Fluorescent lamps
- Incandescent and energy-saving bulbs
- Other standard DC loads

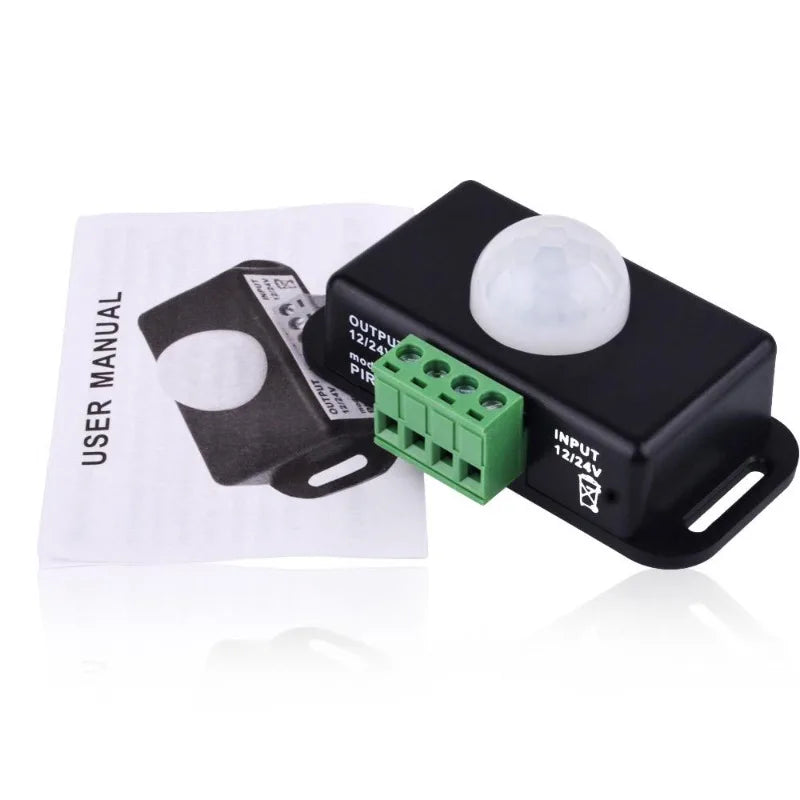

What's in the Box
- 1 × PIR Motion Sensor Switch
You May Also Like
- 10CM Wireless LED Motion Sensor Night Light – Type-C Rechargeable Cabinet & Wardrobe Lamp
- 360-Degree Refrigerator Storage Rotating Tray for Kitchen
- Thick Memory Sponge Floor Mat – Non-Slip Bathroom & Kitchen Mat
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What types of lights is this PIR motion sensor switch compatible with?
A: This motion sensor switch is compatible with LED lamps, LED strip lights, fluorescent lamps, incandescent bulbs, and energy-saving bulbs operating on a 12V or 24V DC system.
Q: What is the detection range and angle of this infrared motion sensor?
A: The sensor detects motion within a 5 to 8 meter range and features a wide 120-degree horizontal detection angle, providing broad area coverage with minimal blind spots.
Q: Is this motion sensor switch easy to install?

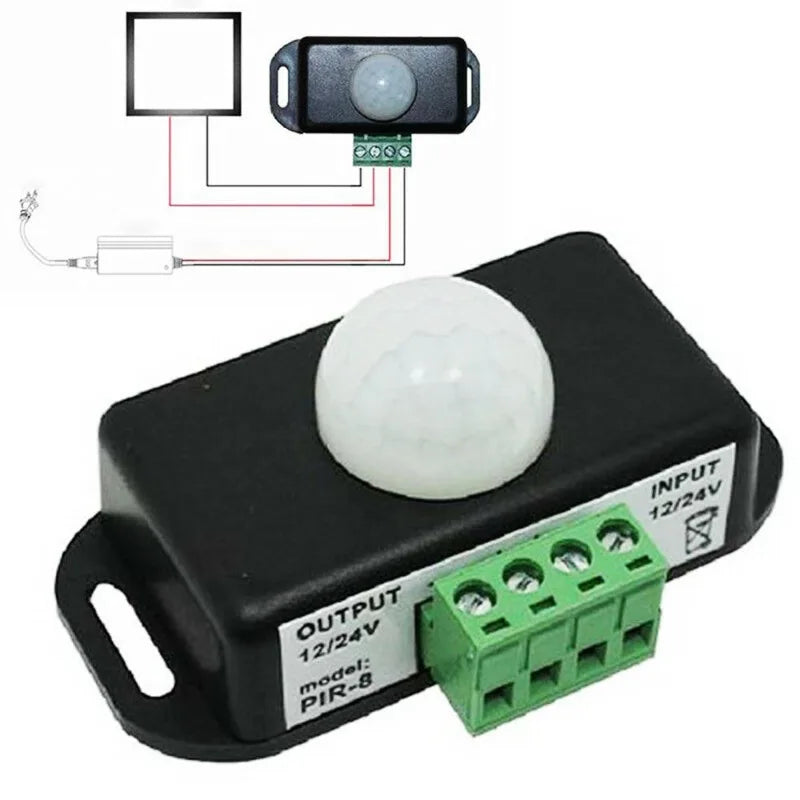

A: Yes! The PIR motion sensor switch is designed for easy, straightforward installation. It connects into your existing 12–24V DC lighting circuit without complex wiring, making it suitable for DIY home and commercial installations.
Q: Will this switch cause flickering in my LED lights?
A: No. This switch is specifically engineered for stable, flicker-free operation, providing smooth and consistent light output every time it activates.
