TPS63802 Mini Boost Module DC 1.8–5.5V to 3.3V/5V Output
TPS63802 Mini Boost Module DC 1.8–5.5V to 3.3V/5V Output
TPS63802 Mini Lithium Battery Boost Module — Compact, Efficient & Versatile
Power your DIY electronics with confidence using the TPS63802 Mini Boost Module by HUXUAN. Built around the highly integrated TPS63802 chip, this compact PCB (just 10.4 × 7.9 mm) accepts a wide DC input range of 1.8–5.5V and delivers a clean, stable output at either 3.3V (2A) or 5V (1A) — making it an ideal power regulation solution for lithium battery-powered projects, handheld devices, IoT modules, and custom power banks.
Made in Mainland China.
Key Features

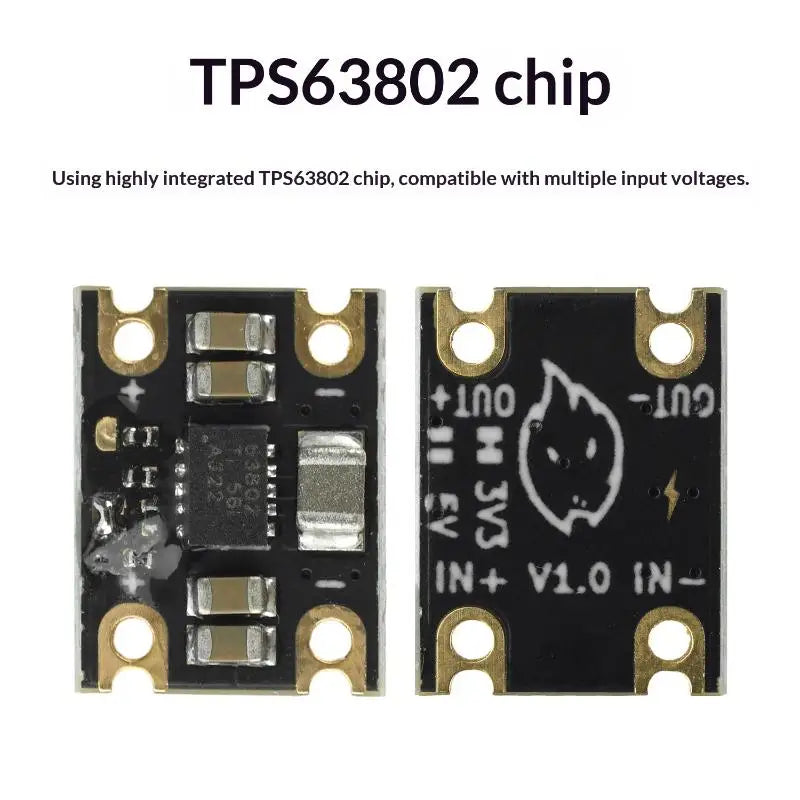

- TPS63802 Integrated Chip: A premium boost-buck converter that handles both step-up and step-down conversion, supporting a broad input voltage range of DC 1.8–5.5V.
- Ultra-Low Quiescent Current: Only 20µA (3.3V mode) or 30µA (5V mode) at 3.7V input — minimising standby drain and maximising your battery runtime.
- Dual Output Voltage Options: Select 3.3V @ 2A or 5V @ 1A to match the requirements of your specific module or circuit.
- High-Power Drive Capability: Supports up to 2A output current on the 3.3V rail, reliably powering demanding microcontrollers and peripherals.
- Low Ripple Output: As low as 18mV at 5V/1A and 34mV at 3.3V/2A for clean, stable power delivery.
- Reduced Heat Generation: Efficient conversion topology minimises energy loss, keeping the module cool during continuous operation.
- Tiny Form Factor: PCB dimensions of just 10.4 × 7.9 mm make this module easy to embed in space-constrained designs.
- Broad Application Compatibility: Perfect for DIY electronics, Arduino/ESP32 projects, IoT devices, handheld gadgets, industrial automation, and custom battery packs.
Technical Specifications

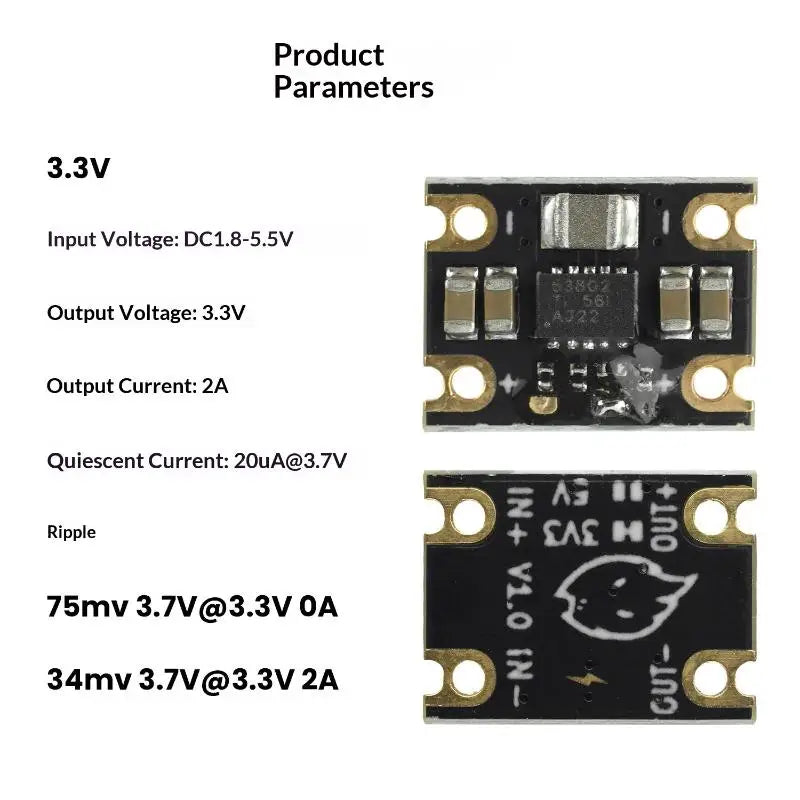

| Parameter | 3.3V Mode | 5V Mode |
|---|---|---|
| Input Voltage | DC 1.8–5.5V | DC 1.8–5.5V |
| Output Voltage | 3.3V | 5V |
| Output Current | 2A | 1A |
| Quiescent Current | 20µA @ 3.7V | 30µA @ 3.7V |
| Ripple (No Load) | 75mV @ 3.7V input | 90mV @ 3.7V input |
| Ripple (Full Load) | 34mV @ 3.7V, 2A | 18mV @ 3.7V, 1A |
| PCB Dimensions | 10.4 × 7.9 mm | |
| Battery Included | No | |
Package Contents
- 1 × TPS63802 Boost Module
You May Also Like
- 10CM Wireless LED Motion Sensor Night Light – Type-C Rechargeable
- 1pc Precision Japanese Double-Edged Hand Saw – SK5 Steel, Portable Mini
- 10Pcs Wooden Handle Nylon Bristle Paint Brush – Hand Tool Set
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What input voltage range does the TPS63802 boost module support?
A: The TPS63802 boost module accepts a DC input voltage range of 1.8V to 5.5V, making it fully compatible with single-cell lithium batteries (typically 3.0–4.2V), AA/AAA battery packs, and other low-voltage sources.
Q: Can I switch between 3.3V and 5V output on the same module?

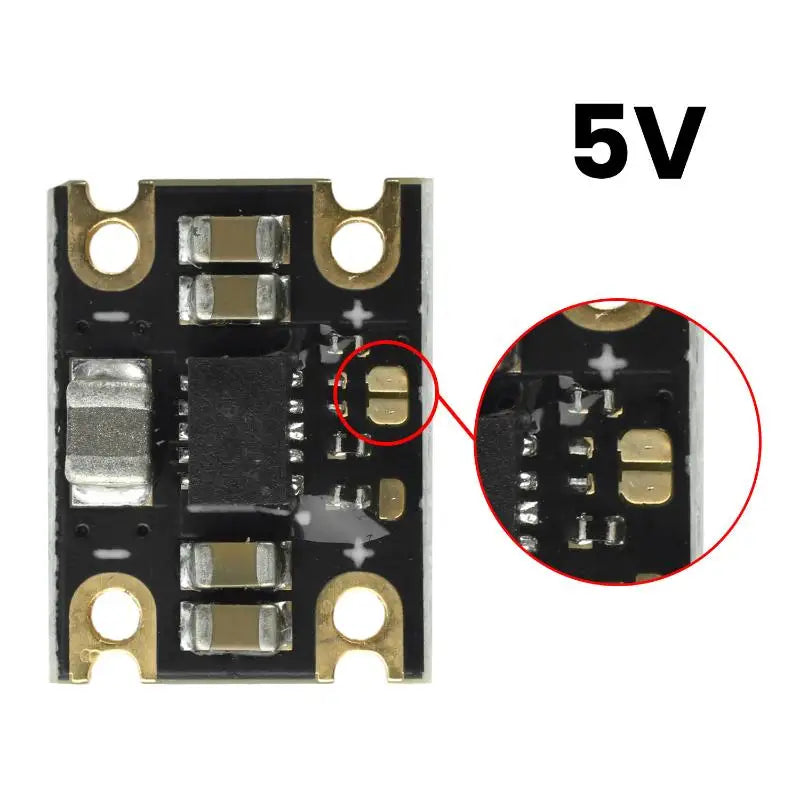

A: The output voltage (3.3V or 5V) is typically selected at the hardware level via a solder pad or pin configuration on the PCB. Please check the module's silkscreen or datasheet for the exact switching method. Note that the 3.3V variant supports up to 2A output, while the 5V variant supports up to 1A.
